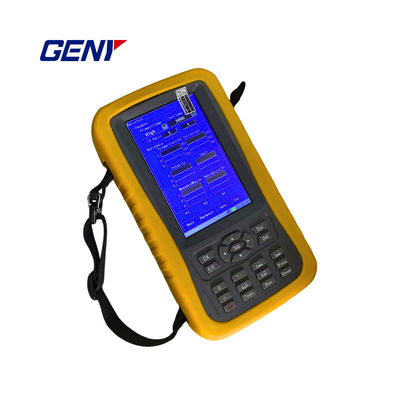

| الاسم التجاري: | GENY |
| رقم الطراز: | YC-98S1H |
| شروط الدفع: | الاعتماد المستندي، تي/تي |
■ On-site error measurement of electricity meters
■ Accuracy class 0.05 in direct mode

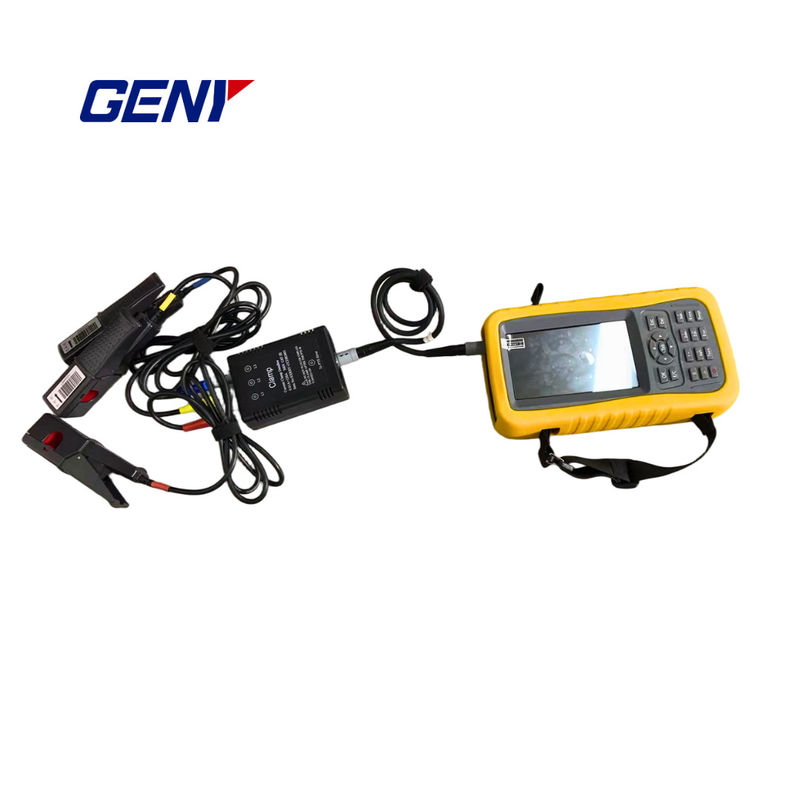

■ Current measurement with AC clamps from 5A to 2000A
■ Harmonics up to 51 st
■ Burden measurement for CT/PT
■ Ratio measurement for CT/PT
■ Ratio measurement for High voltage CT up to 35KV (optional)
■ 5 inch TFT touch LCD
■ Power supply via external supply, test voltage or battery
■ Handheld type with weight of 0.9KG
■ Capable of conducting three - phase CT tests
|
Application Conditions and Requirements |
||||
|
Environment |
Safety |
|||
|
Operation Temperature |
Relative Humidity |
Altitude |
IP Class |
Conformity |
|
-25℃-45℃ |
40%-95% |
<2500m |
51 |
IEC |
|
Model |
YC-98S1 |
YC-98S1H |
||
|
Test Voltage |
||||
|
Range |
30-480V |
0-440V |
||
|
Error |
±0.05% |
±0.05% |
||
|
Harmonics |
2nd - 51st |
2nd - 51st |
||
|
Test Current |
||||
|
Range (Direct mode) |
0.025-12A |
0.001-12A |
||
|
Error (Direct mode) |
±0.05% |
±0.05% |
||
|
Range (100A Clamp - on CT) |
0.5-120A |
0.1-120A |
||
|
Error (100A Clamp - on CT) |
±0.2% |
±0.2% |
||
|
Harmonics |
2nd - 51st |
2nd - 51st |
||
|
Power/Energy Measurement Error |
||||
|
Active (Direct mode) |
±0.05% |
±0.05% |
||
|
Active (100A Clamp - on CT) |
±0.2% |
±0.1% |
||
|
Reactive (Direct mode) |
±0.1% |
±0.1% |
||
|
Reactive (100A Clamp - on CT) |
±0.5% |
±0.5% |
||
|
Other Errors |
||||
|
Ratio Measurement |
±0.5% |
±0.5% |
||
|
Voltage Influence |
<±0.01% |
<±0.01% |
||
|
Frequency Influence |
<±0.01% |
<±0.01% |
||
|
Temperature Influence |
<±0.01%/℃ |
<±0.01%/℃ |
||
|
24h Accuracy Influence |
<±0.01% |
<±0.01% |
||
|
Harmonic Influence |
<±0.01% |
<±0.01% |
||
|
Phase Angle |
||||
|
Range |
-180° - 180° |
-180° - 180° |
||
|
Error |
<±0.1° |
<±0.1° |
||
|
Frequency |
||||
|
Range |
45 - 65Hz |
45 - 65Hz |
||
|
Error |
±0.01Hz |
±0.01Hz |
||
|
Pulse Output |
||||
|
High Frequency (Direct mode) |
1.8x10^5 PKWh |
1.2x10^5 PKWh |
||
|
Low Frequency (Direct mode) |
360000P/(kWh,kvarh,kVAh) |
2400P/(kWh,kvarh,kVAh) |
||
|
Pulse ratio |
1:01 |
1:01 |
||
|
Output level |
5V |
5V |
||
|
Pulse Input |
||||
|
Input Channel |
2 |
2 |
||
|
Input Level |
5 - 10V |
5 - 10V |
||
|
Input Frequency |
Max. 5kHz |
Max. 5kHz |
||
|
Others |
||||
|
Power Supply |
External power, test voltage or battery |
External power, test voltage or battery |
||
|
Display |
7" TFT Touch Screen |
5" TFT Touch Screen |
||
|
Dimension (mm) |
245×150×50 |
210×110×52 |
||
|
Weight (KG) |
2 |
0.9 |
||
