YC2000 Handheld Single-Phase Energy Meter Calibrator

YC2000 Handheld Single-Phase Energy Meter Calibrator

الاسم التجاري: GENY
رقم الطراز: YC2000C
الـ MOQ: 1 أجهزة كمبيوتر
السعر: قابل للتفاوض
شروط الدفع: L/C ، T/T.
القدرة على التوريد: 300/سنة
معلومات مفصلة
مكان المنشأ:
الصين
إصدار الشهادات:
ISO 14001
أقصى جهد اختبار:
YC2000C
مزود الطاقة:
AC 85V إلى 265V
دروس الدقة::
0.2 ٪ ، 0.3 ٪ ، و 0.5 ٪
أقصى تيار اختبار:
50a أو 100a (باستخدام المشبك الحالي للتيار الأساسي)
تفاصيل التغليف:
العبوة القياسية
القدرة على العرض:
300/سنة
إبراز:

handheld energy meter calibrator,single-phase energy meter tester,portable reference standard calibrator

,

single-phase energy meter tester

,

portable reference standard calibrator

وصف المنتج
YC2000 Handheld Single-Phase Energy Meter Calibrator
The YC2000 Handheld Single-Phase Energy Meter Calibrator is specially designed for electric power departments, energy meter manufacturers, metrology and quality inspection agencies, as well as industrial and mining enterprises. It provides reliable, accurate, and convenient on-site testing of single-phase electric meters.
Key Features of YC2000 Handheld Single-Phase Calibrator
  • High-Resolution Backlit LCD Display: 128×64 pixels with backlight for clear visibility, featuring 16 keys for easy operation and multiple functions.
  • Multimeter Functionality: Measures voltage, current, active power, reactive power, power factor, phase angle, and frequency of the power grid, functioning as a reliable multimeter.
  • Comprehensive Data Management: Records meter ID, meter type, customer name, date and time, measurement mode (manual/automatic), and rotation counts in an internal database.
  • Built-in Database Storage: Stores up to 90 sets of measurement data, including voltage, current, power, phase angle, and error values for thorough analysis.
  • Online Help Function: Provides user assistance directly on the device for easier operation.
  • PC Connectivity via RS232: Upload stored data to a PC for further processing and record keeping.
Technical Specifications
Specification Value
Maximum Test Voltage 260V
Maximum Test Current 50A or 100A (using current clamp for primary current)
Power Supply AC 85V to 265V
Accuracy Classes 0.2%, 0.3%, and 0.5%
Device Dimensions 185mm × 87mm × 41mm
Device Weight 0.4 kg

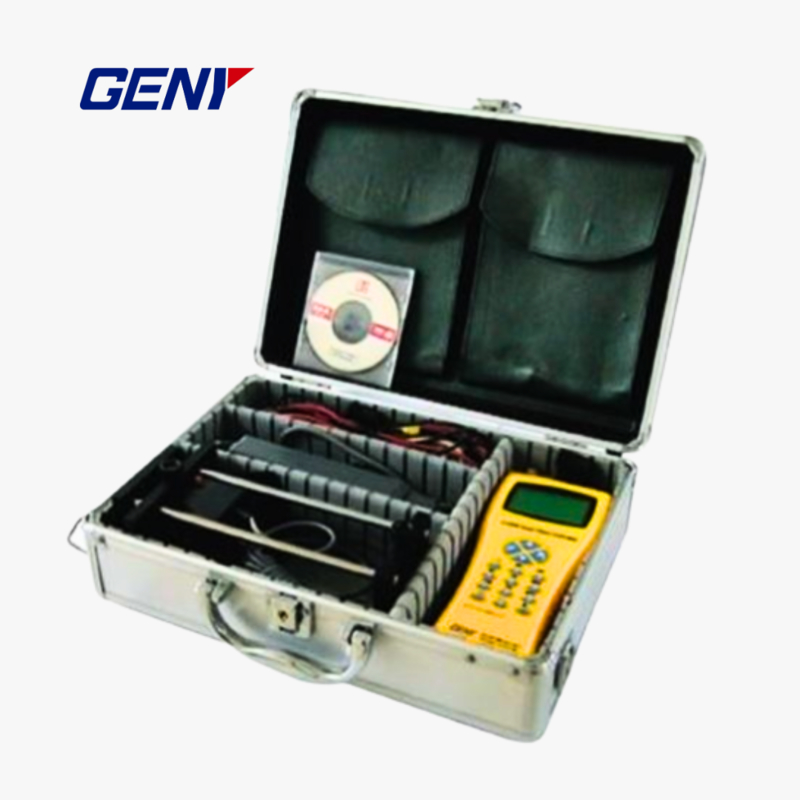

Included Accessories
  • Current clamp for accurate current measurement
  • Voltage test leads
  • Optical sensor heads compatible with both electronic and mechanical meters
  • Communication cable (optional)
  • PC software (optional)
  • Pulse input/output cables
  • User manual
  • Carrying case for safe transport and storage
