GENY-Premium Communication Energy Meter Testing Equipment

GENY-Premium Communication Energy Meter Testing Equipment

الاسم التجاري: GENY
رقم الطراز: YC1893D
الـ MOQ: قطعة واحدة
السعر: قابل للتفاوض
شروط الدفع: خطاب الاعتماد، تي/تي، د/ف
القدرة على التوريد: 10 قطعة في الشهر
معلومات مفصلة
مكان المنشأ:
الصين
إصدار الشهادات:
ISO, CE
دقة عالية:
0.05
عجلة اختبار الخروج:
3*(24V-300V)
اختبار الإخراج الحالي:
3*(1MA-120A/200A)
نطاق التردد:
45 هرتز -65 هرتز
نطاق زاوية المرحلة:
0 ° -360 درجة
تفاصيل التغليف:
علبة تصدير قياسية
القدرة على العرض:
10 قطعة في الشهر
وصف المنتج

GENY-Premium Communication Energy Meter Testing Equipment


General Introduction

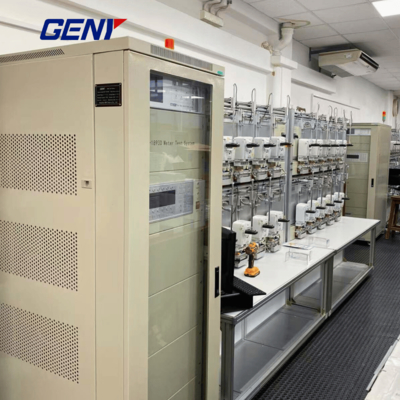

YC-1893D is high-performance calibration equipment for three-phase electricity meters, which combines
characteristics of different users in different fields including power supply, metrology and manufacturer of
electricity meters. It is designed and manufactured in compliance with IEC60736 to meet various
requirements in calibration of electricity meters today and the future.


Convenient Verifying Features




 Clear high-brightness LED error display
 Wide range current output setting
 Both manual/automatic positioning of the color mark on the plate of the verified meter.
 Centralized overturn of the multi-position scanning head
 Fast and convenient wiring method
 Suit for mechanical meter or electronic meter
 Reliable and stable power source


Flexible system characteristics



 RS-232 and RS-485 standard interfaces
 Automatic verification by PC
 Manual verification by keyboard
 Simultaneous verification of different constant meters
 Flexible setting of the verification projects
 Software options for multi-constant standard electric energy meters
 Barcode input and network access functions
