| الاسم التجاري: | GENY |
| رقم الطراز: | YC1893D |
| الـ MOQ: | 1 أجهزة كمبيوتر |
| السعر: | قابل للتفاوض |
| شروط الدفع: | L/C ، T/T ، D/P. |
| القدرة على التوريد: | 100/سنة |
Guangzhou GENY Electric Co., Ltd. is a professional manufacturer of power metering and testing equipment, established in 2002. With the registered brand "GENY", we are known for reliable quality, innovative design, and strong industry expertise.
We focus on R&D and production of electric meter testing systems, serving utilities and industrial users with trusted solutions.

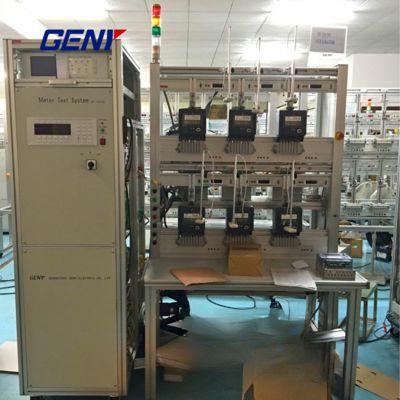

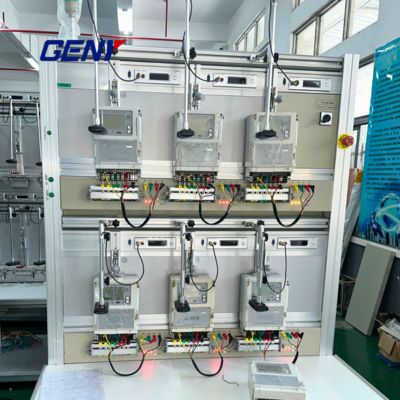

The test bench is a high-precision three-phase meter test system with an accuracy class of 0.02%, capable of testing up to 6 meters simultaneously. It integrates ICTs (Information and Communication Technologies) and features a multi-serial port communication system for efficient parallel testing of smart meters.
|
Voltage |
3×240±15% |
|
Frequency |
50 Hz ±15% |
|
Power capacity |
> 6 kVA |
|
Power efficient(at full load) |
≥85% |
|
Ambient temperature |
-10 °C -- +40 °C |
|
Relative humidity |
35% -- 85% |
|
Voltage |
|
|
Test voltage output (Phase-Neutral) |
3×(24 V – 480 V) or 600 V F-F customized |
|
Power of the voltage output |
3×100VA |
|
Resolution |
Better than 0.01% of full scale value of range |
|
Setting accuracy |
Better than 0.02% at the final range value |
|
Stability |
Better than 0.005%/h (integration time 150 s) |
|
Load regulation from 0-max. load |
< 0.01% |
|
Distortion factor |
< 0.3% for linear resistance load |
|
Harmonics |
2nd – 21st free programmable |
|
Current |
|
|
Test current output |
0.3 mA – 120 A |
|
Power of the current output |
3×150VA |
|
Resolution |
Better than 0.01% of full scale value of range |
|
Setting accuracy |
Better than 0.02% at the final range value |
|
Stability |
Better than 0.005%/h (integration time 150 s) |
|
Load regulation from 0-max. load |
< 0.01% |
|
Distortion factor |
< 0.3% for linear resistance load |
|
Harmonics |
2nd – 21st free programmable |
|
Phase angle |
|
|
Range |
0 -- 360° |
|
Resolution |
0.01° |
|
Setting accuracy |
0.1° |
|
Frequency |
|
|
Range |
45 Hz – 65 Hz |
|
Resolution |
0.01 Hz |
