BLE-IR Bluetooth Optical Probe

BLE-IR Bluetooth Optical Probe

الاسم التجاري: GENY
رقم الطراز: BLE-IR مسبار بصري بلوتوث
الـ MOQ: 1
السعر: negotiate rates
شروط الدفع: T/T ، L/C ، D/P ، T/T.
القدرة على التوريد: 100 قطعة/1 شهر
معلومات مفصلة
مكان المنشأ:
الصين
إصدار الشهادات:
ISO, CE
اتصال مزدوج:
بلوتوث 5.3 بليه ومنفذ USB من النوع C (بدون برنامج تشغيل)
دعم البروتوكول::
IEC 62056-21 (الوضع C / الوضع E)، ANSI C12.18
الوضع الذكي:
يكتشف معلمات الاتصال تلقائيًا لتقليل وقت الإعداد
تصميم متين:
التصاق مغناطيسي قوي (≥10 N)، غطاء مقاوم للصدمات (IP51)
عمر بطارية طويل:
ما يصل إلى 10 ساعات من الاستخدام المتواصل، و60 يومًا في وضع الاستعداد
شحن سريع:
80% في 30 دقيقة عبر USB-C PD
خفيفة الوزن وصغيرة الحجم::
Ø32 مم × 23 مم، ≈35 جم
تفاصيل التغليف:
حالات الخشب الرقائقي
القدرة على العرض:
100 قطعة/1 شهر
إبراز:

BLE-IR Bluetooth optical probe,Bluetooth optical probe with warranty,Meter testing accessory optical probe

,

Bluetooth optical probe with warranty

,

Meter testing accessory optical probe

وصف المنتج

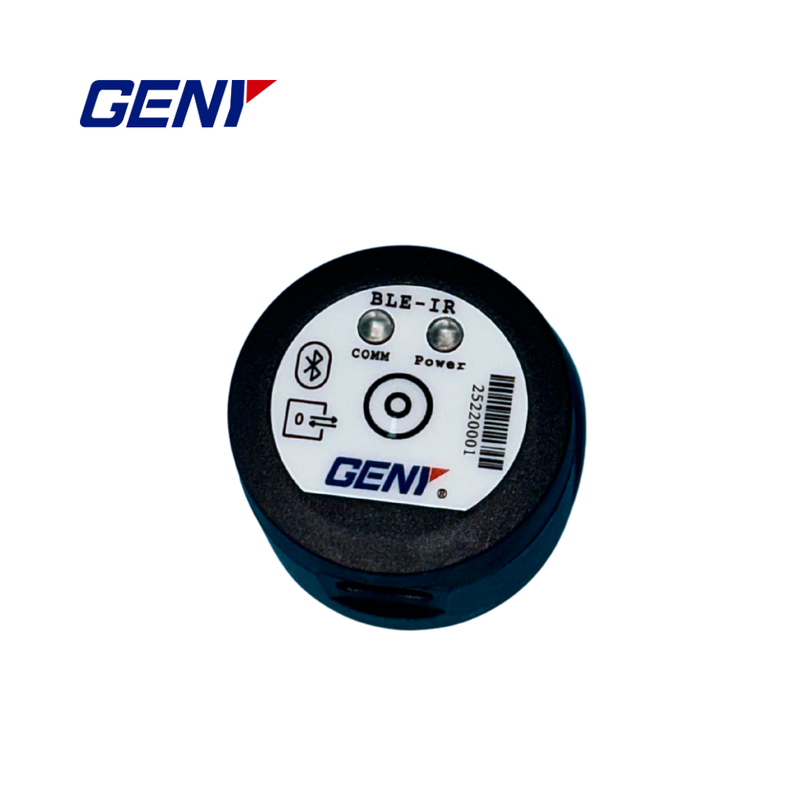

BLE-IR Bluetooth Optical Probe
Next-Generation Optical Communication for Smart Meter Testing

The BLE-IR from Guangzhou Geny Electric Ltd. is a next-generation Bluetooth optical probe designed to make smart meter testing, commissioning, and maintenance faster and easier. With Bluetooth 5.3 BLE and USB Type-C dual connectivity, it ensures fast, reliable, and flexible optical communication for both lab and field environments.

Key Features
  • Dual Connectivity: Bluetooth 5.3 BLE & USB Type-C (driver-free)
  • Protocol Support: IEC 62056-21 (Mode C / Mode E), ANSI C12.18
  • Smart Mode: Auto-detects communication parameters to reduce setup time
  • Rugged Design: Strong magnetic adhesion (≥10 N), impact-resistant housing (IP51)
  • Long Battery Life: Up to 10 hours continuous use, 60 days standby
  • Fast Charging: 80% in 30 minutes via USB-C PD
  • Lightweight & Compact: Ø32 mm × 23 mm, ≈35 g
Highlights
  • Adaptive IEC 62056-21 communication for faster, error-free testing
  • Works with Geny test systems or third-party tools
  • Firmware upgradable via Bluetooth or USB
Availability

Now available through Guangzhou Geny Electric and authorized distributors.
Optional USB-C cables (1 m-3 m) and magnet grades (N45/N52) available.
