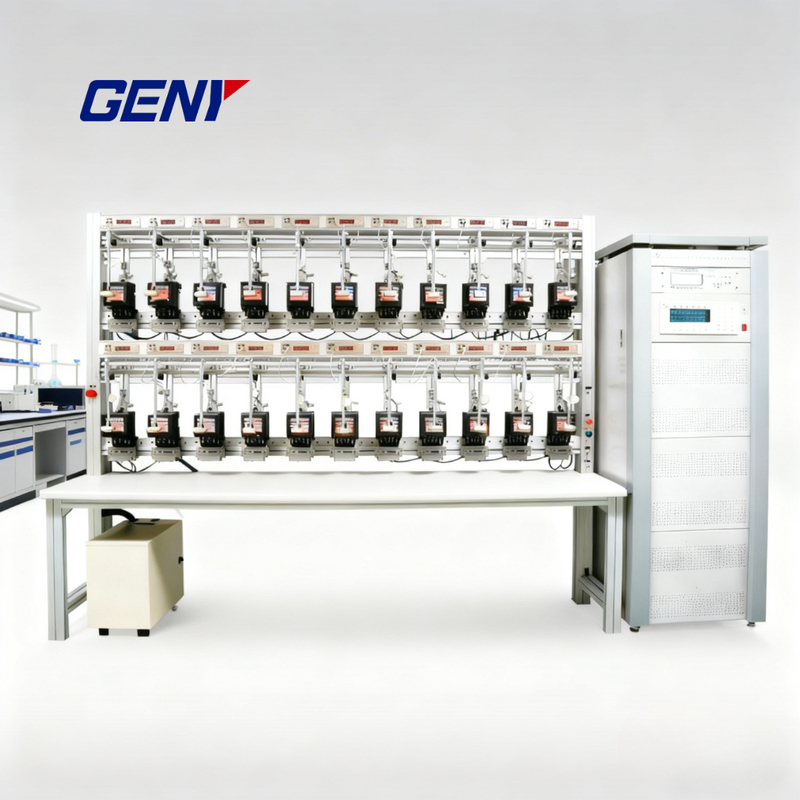

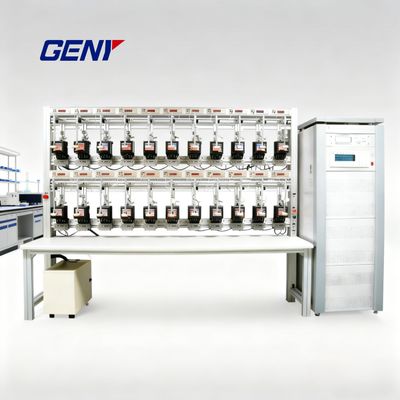

YC1893D Series Automatic Meter Test System

YC1893D Series Automatic Meter Test System

الاسم التجاري: GENY
رقم الطراز: YC-1893D
الـ MOQ: 1
سعر: negotiate rates
شروط الدفع: T/T ، L/C ، D/P ، T/T.
القدرة على التوريد: 10 مجموعات / 1 أشهر
معلومات مفصلة
مكان المنشأ:
الصين
إصدار الشهادات:
ISO, CE
بناء:
الكل في واحد
استقرار:
أفضل من 0.005%/ساعة (زمن التكامل 150 ثانية)
الجهد االكهربى:
3x230 / 400 فولت ±10%، 50/60 هرتز ±2 هرتز التردد 50 هرتز ±15%
اختبار جهد جهد (محايد الطور):
3x(24 – 300 فولت)
دقة:
أفضل من 0.01 ٪ من قيمة النطاق الكامل للنطاق
ضبط الدقة:
أفضل من 0.05% عند قيمة النطاق النهائية
تفاصيل التغليف:
حالات الخشب الرقائقي
القدرة على العرض:
10 مجموعات / 1 أشهر
إبراز:

automatic meter test system YC1893D

,

stationary meter test equipment

,

YC1893D series meter testing

وصف المنتج
YC1893D Series Automatic Meter Test System The YC1893D Series Meter Test System is a fully automatic, high-precision three-phase energy meter testing solution. It is fully compliant with IEC 60736 and supports testing in accordance with IEC 62052-11, IEC 62053-11/21/22/23/24, IEC 62056, EN 50470-1/2/3, and IEC 61010 standards. Designed for utility companies, meter manufacturers, and metrology laboratories, the YC1893D offers accurate, stable, and efficient calibration and
