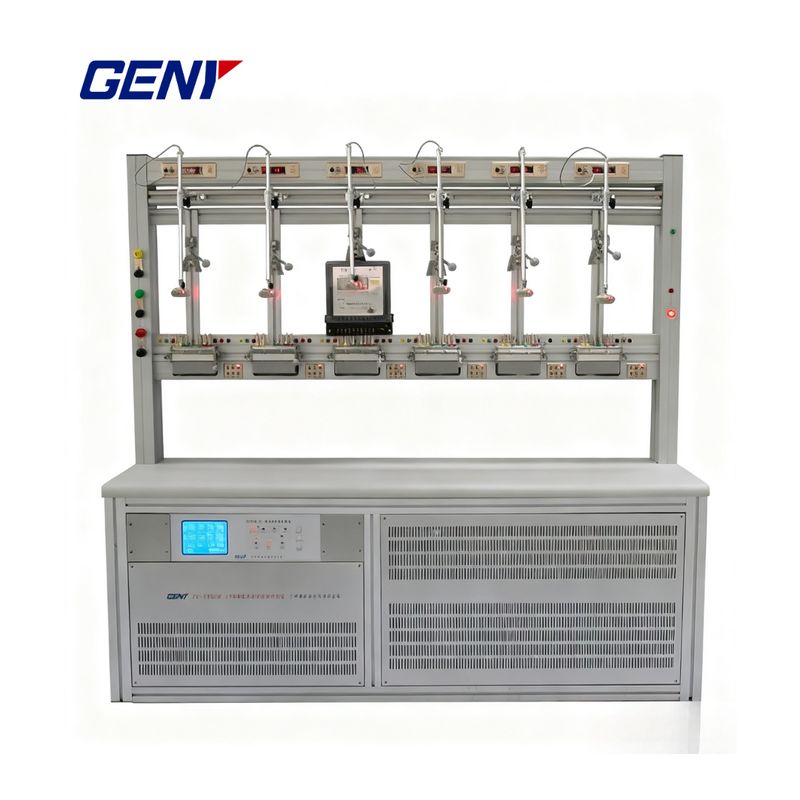

Advanced Meter Test Equipment for Precision Single-Phase Energy Meter Calibration

الاسم التجاري:	GENY
رقم الطراز:	YC1891D
الـ MOQ:	1 قطعة
السعر:	قابل للتفاوض
شروط الدفع:	خطاب الاعتماد، تي/تي، د/ف
القدرة على التوريد:	100/سنة

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين

إصدار الشهادات:

ISO, CE

الوثيقة:

Geny product brochure 2020.pdf

دقة:

0.05

عجلة اختبار الخروج:

24 فولت - 288 فولت أو حسب الطلب

اختبار الإخراج الحالي:

1mA - 100A أو حسب الطلب، Max.200A

دقة:

أفضل من 0.01 ٪ من قيمة النطاق الكامل للنطاق

ضبط الدقة:

أفضل من 0.05% عند قيمة النطاق النهائية

استقرار:

أفضل من 0.005%/ساعة (زمن التكامل 150 ثانية)

تفاصيل التغليف:

حالة الخشب الرقائقي

القدرة على العرض:

100/سنة

إبراز:

single-phase energy meter tester,precision meter calibration equipment,energy meter test equipment with warranty

precision meter calibration equipment

energy meter test equipment with warranty

وصف المنتج

Advanced Meter Test Equipment for Precision Single-Phase Energy Meter Calibration

Our high-performance meter test equipment is engineered for precise, reliable testing of 1P2W single-phase energy meters. Designed for laboratories, utilities, and meter manufacturers, this system supports active power, reactive power, and cross-connected reactive power testing with exceptional accuracy.

Key Features

Versatile Meter Compatibility

Supports testing of 1P2W single-phase meters
Suitable for mechanical meters, electromechanical meters, and electronic meters
Capable of automatic, semi-automatic, and manual testing modes
Tests meters with different meter constants simultaneously

Advanced Testing Capabilities

Active / Reactive / Cross-Connected Reactive Power testing
Starting test and creeping test for precise performance verification
MSVT function for testing meters with I-P closed links between voltage and current circuits
Built-in current output switch for calibrating 2-element meters
Optional neutral current test and tilt impact test

High Accuracy & Stability

Power stability up to 10 ppm
Accuracy class 0.1 and 0.05
Reliable timing error test, harmonic analysis, and influence test (voltage, frequency, harmonics)

Enhanced Efficiency & Safety

Automatic rotor mark positioning for mechanical meter discs
Scanning head swing mechanism for simplified operation
Protection against overload, short-circuit voltage, and open current circuits
Aluminum-alloy construction: lightweight, robust, and corrosion-resistant

Flexible Software & Connectivity

User-friendly testing software compatible with Windows 2000 / XP / 7 / 8 / 10
Includes modules for error testing, harmonic testing, demand testing, and influence testing
RS232 and Ethernet communication ports available at each meter position

Primary Competitive Advantages
