YCS-103 Three-Phase Power Source for Energy Meter Testing

الاسم التجاري:	GENY
رقم الطراز:	YCSS-103
الـ MOQ:	1
السعر:	negotiate rates
شروط الدفع:	T/T ، L/C ، D/P ، T/T.
القدرة على التوريد:	10 قطع / 1 شهر

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين

إصدار الشهادات:

ISO, CE

الوثيقة:

Catalogue——Meter Test S...m..pdf

دقة الإعداد:

أفضل من 0.05% عند قيمة النطاق النهائية

استقرار:

أفضل من 0.005%/ساعة (وقت الدمج 150 ثانية)

عامل التشويه:

أفضل من 0.3 ٪ لتحميل المقاومة الخطية

التوافقيات:

الثاني - 21 من القابلة للبرمجة الحرة

إمداد الجهد:

3×220/380 فولت ± 10% أو مخصص 50/60 هرتز ± 2 هرتز

اختبار الإخراج الحالي:

3×(1 مللي أمبير – 100 أمبير)

تفاصيل التغليف:

حالات الخشب الرقائقي

القدرة على العرض:

10 قطع / 1 شهر

إبراز:

three-phase power source for energy meters,stationary power source with warranty,energy meter testing power supply

stationary power source with warranty

energy meter testing power supply

وصف المنتج

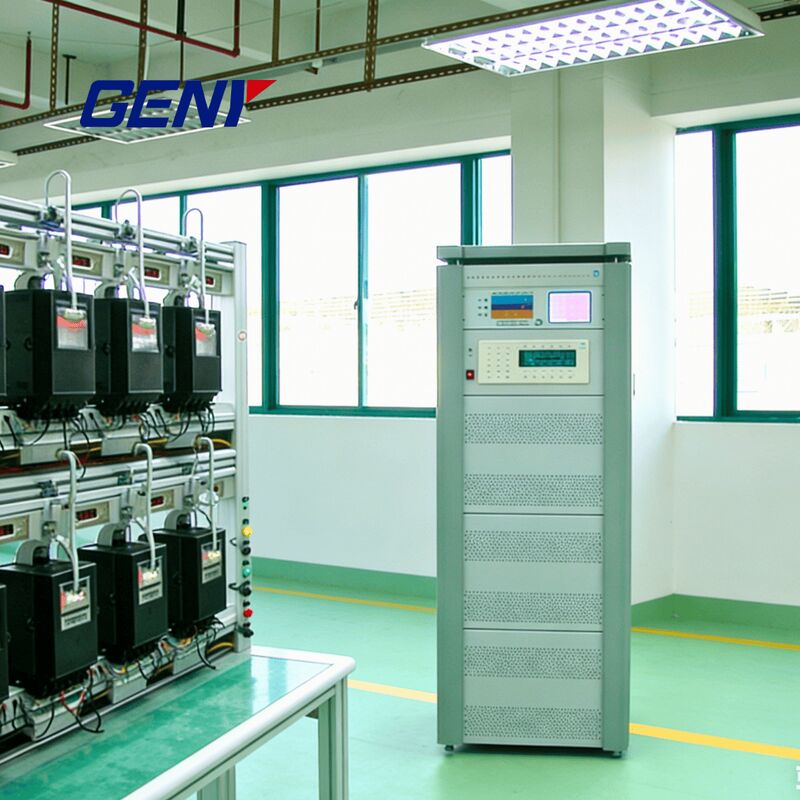

YCS-103 Three-Phase Power Source for Energy Meter Testing

The YCS-103 Three-Phase Power Source is a high-precision, programmable power source designed for energy meter testing and calibration. It provides independent three-phase voltage and current outputs, making it suitable for testing both three-phase and single-phase electricity meters in laboratories, meter production lines, and test benches.

Key Features & Functions

Three independent voltage and current channels for accurate testing of three-phase and single-phase energy meters
High accuracy and long-term output stability ensures reliable and repeatable results for meter verification and calibration
Programmable harmonic output (2nd-41st harmonics) with adjustable harmonic amplitude and phase angle, compliant with modern meter testing standards
RS-232 communication interface enables fully automatic operation and easy integration with meter test bench systems
Optional built-in keyboard supports both manual control and PC-controlled operation
Rugged aluminum alloy housing provides lightweight, corrosion-resistant construction suitable for long-term industrial use
Comprehensive protection design with built-in protection against overload, voltage short-circuit, and current open-circuit
User-friendly control software with simple interface for fast setup, operation, and testing efficiency
CE certified and complies with EU health, safety, and EMC standards
