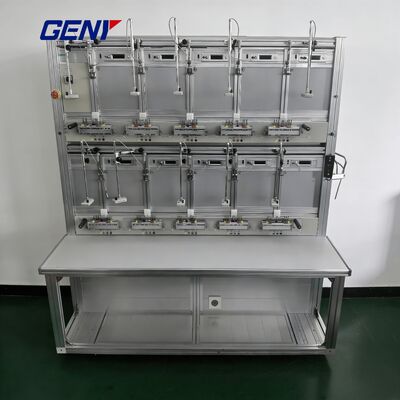

Three Phase Energy Meter Testing Equipment with 0.01% Accuracy

Three Phase Energy Meter Testing Equipment with 0.01% Accuracy

الاسم التجاري: GENY
رقم الطراز: YC1893D
الـ MOQ: 1 قطعة
السعر: قابل للتفاوض
شروط الدفع: خطاب الاعتماد، تي/تي، د/ف
القدرة على التوريد: 100/سنة
معلومات مفصلة
مكان المنشأ:
الصين
إصدار الشهادات:
ISO, CE
عجلة اختبار الخروج:
24 فولت 288 فولت أو مخصصة
نطاق التردد:
45 هرتز 65 هرتز
إمداد الجهد:
220 فولت ± 10٪ أو حسب الطلب 50/60 هرتز ± 2 هرتز
اختبار الإخراج الحالي:
1ma - 100a أو مخصصة ، max.200a
استقرار:
أفضل من 0.005 ٪ /ساعة (وقت التكامل 150)
دقة:
أفضل من 0.01 ٪ من قيمة النطاق الكامل للنطاق
تفاصيل التغليف:
حالة الخشب الرقائقي
القدرة على العرض:
100/سنة
إبراز:

three phase energy meter tester,energy meter testing equipment with warranty,high accuracy energy meter tester

,

energy meter testing equipment with warranty

,

high accuracy energy meter tester

وصف المنتج
Three Phase Energy Meter Testing Equipment with 0.01% Accuracy
GENY Energy Meter Testing Equipment is a professional three phase energy meter test bench designed for high-precision testing and calibration of mechanical, electromechanical, and electronic energy meters. The system supports automatic, semi-automatic, and manual operation, providing maximum flexibility for laboratories, utility companies, and energy meter manufacturers. With ultra-high accuracy, excellent power stability, and modular configuration, this equipment fully complies with international metrology standards and is ideal for long-term industrial use.
Key Specifications
Meter Types Supported Mechanical energy meters, Electromechanical energy meters, Electronic energy meters
Meter Wiring Modes 3 Phase 4 Wire (3P4W), 3 Phase 3 Wire (3P3W), Single Phase 2 Wire (1P2W)
Testing Modes Active energy test, Reactive energy test, Cross-connected reactive energy test
Accuracy Class 0.05 / 0.02, Highest accuracy up to 0.01% (under 3 meter positions)
Meter Positions Configurable from 3 to 48 three-phase meter positions
Main Features
  • Simultaneous testing of meters with same specifications but different meter constants
  • Automatic disc rotor mark positioning for mechanical meters, significantly improving efficiency
  • Starting test and creeping test
  • Neutral current test (optional)
  • Optional ICT installed at each meter position to test three-phase meters with closed I-P links
  • High-level safety protection system: Overload protection, Voltage short-circuit protection, Current open-circuit protection
  • Synchronized scanning head movement for easy and stable control
  • Lightweight aluminum alloy frame: High strength, Corrosion resistant, Long service life
Advanced Testing Software
The system is equipped with professional energy meter testing software, fully compatible with Windows 2000 / XP / 7 / 8 / 10.
Software Functions Include:
  • Accuracy (error) test
  • Harmonic test
  • Demand test
  • Timing error test
  • Voltage, frequency, and harmonic influence test
  • Data storage, analysis, and report generation
User-friendly interface ensures easy operation and fast learning.
